Museum & Gallery Lighting by Universal Fibre Optics

Our range of LED light sources use the latest technology to provide high light output combined with a small unit size and very cool and quiet running.

LED modules typically have a lifespan of around 40,000 hours which reduces maintenance requirements to almost nil. Power consumption is also vastly reduced in comparison to older lamp technologies making LED the most environmentally friendly and sustainable option for fibre illumination.

Offering a choice of colour temperatures especially chosen for use in display applications, our range of LED light sources also offers full DMX control as well as in-built dimming effecs via a control on the light source body.

All our LED products utilise an industry standard 30mm fibre port so can be retro-fitted to replace existing older technology units.

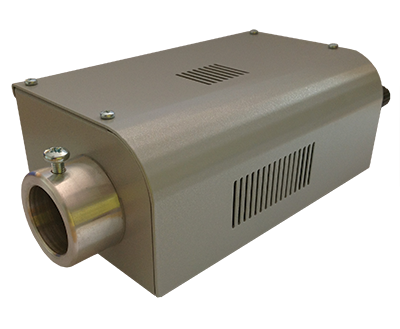

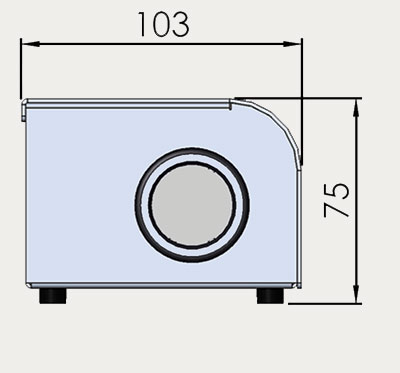

The UFO Mercury SlimlineView | Download Datasheet

	Specifications Dimensions: 200mm x 103mm x 75mm Lamp type: LED Supply voltage: 110VAC 60Hz / 230VAC 50Hz Power supply: External 36VDC adaptor Power consumption: <48W Colour temperature: 3050K CRI: >91 Approx LED life: 40,000 hours DMX: optional Dimming: Inbuilt 0-10V Acoustic rating: 20dB(A) Min. ambient temperature: -10C Max. ambient temperature: 45C Enclosure: Silver, aluminium

Our range of LED light sources use the latest technology to provide high light output combined with a small unit size and very cool and quiet running.

LED modules typically have a lifespan of around 40,000 hours which reduces maintenance requirements to almost nil. Power consumption is also vastly reduced in comparison to older lamp technologies making LED the most environmentally friendly and sustainable option for fibre illumination.

Offering a choice of colour temperatures especially chosen for use in display applications, our range of LED light aources also offers full DMX control as well as in-built dimmong effecs via a control ont the light source body.

All our LED products utilise an industry standard 30mm fibre port so can be retro-fitted to replace existing older technology units.

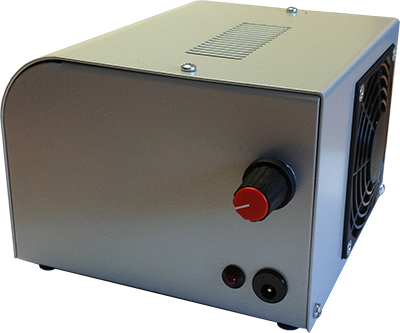

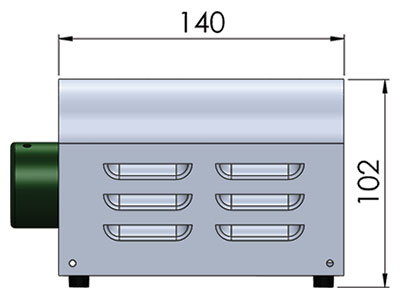

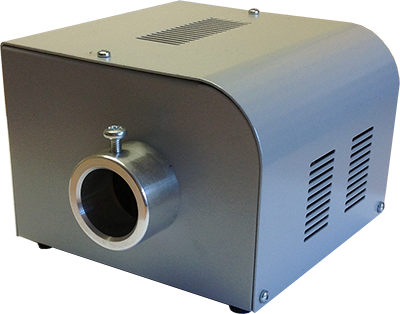

The VegaView | Download Datasheet

	Specifications Dimensions: 140mm x 137mm x 90mm Lamp type: LED Supply voltage: 110VAC - 240VAC 50-60Hz. 1.8A Power supply: External 24VDC 2.5A 60W Max. Colour temperature: 4000K CRI: 82 (typical) LED power: Max. 20W Approx LED life: 40,000 hours Equivalent TH light output: 120W Min. ambient temperature: -10C Max. ambient temperature: 45C Enclosure: Silver, aluminium

Our range of LED light sources use the latest technology to provide high light output combined with a small unit size and very cool and quiet running.

LED modules typically have a lifespan of around 40,000 hours which reduces maintenance requirements to almost nil. Power consumption is also vastly reduced in comparison to older lamp technologies making LED the most environmentally friendly and sustainable option for fibre illumination.

Offering a choice of colour temperatures especially chosen for use in display applications, our range of LED light aources also offers full DMX control as well as in-built dimmong effecs via a control ont the light source body.

All our LED products utilise an industry standard 30mm fibre port so can be retro-fitted to replace existing older technology units.

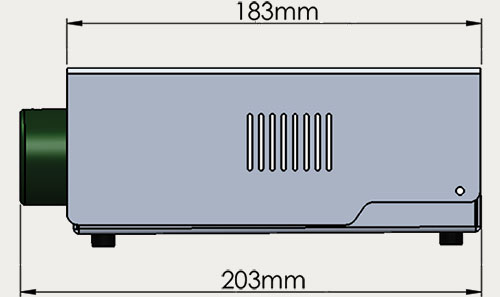

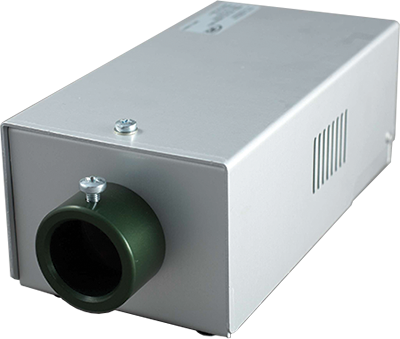

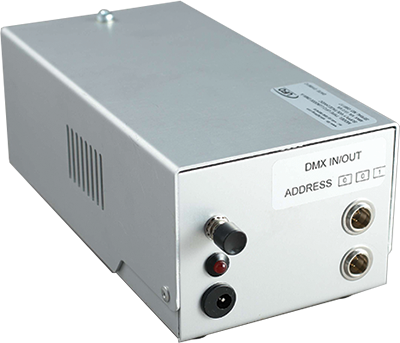

The LunaView | Download Datasheet

	Specifications Dimensions: 183mm x 95mm x 78mm Lamp type: LED Supply voltage: 110VAC - 240VAC 47-63Hz Power supply: External 36VDC adaptor Power consumption: <48W Colour temperature: 3000K or 4000K CRI: >80 (3000K) >75 (4000K) LED power: 11.5W Approx LED life: 40,000 hours DMX: factory addressable 1 channel dimming Min. ambient temperature: -10C Max. ambient temperature: 45C Enclosure: Silver, aluminium

These light sources use lamps based on the tungsten halogen cycle which give uniform light output until close to the time of lamp expiry.

The lamps are low voltage, low in UV output and typically last from 1500 to 4000 hours, depending on wattage.

Because the lamps are relatively cool running there is the option with lower Wattage versions of these light sources to be fanless, although this will have an impact on lamp life.

Optionally, halogen light sources can be mains dimmed, with 75W and 100W units requiring a separate power feed to the fan to avoid it stopping. Alternatively, a popular option is to supply an integral manual dimmer with a dimming control on the light source body.

The UFO range of tungsten halogen light sources is available with lamp Wattages of 35W, 42W, 50W, 75W and 100W, so are suitable for a large variety of project types.

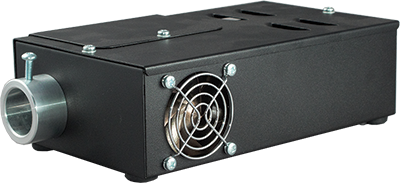

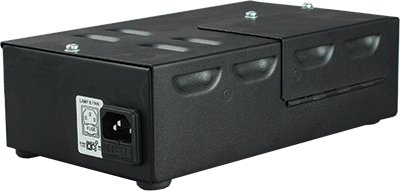

The UFO SlimlineView | Download Datasheet

	Specifications Dimensions: 262mm x 140mm x 75mm Supply voltage: 110VA 60Hz / 230VAC 50Hz Max. start up current: 0.73A (100W) Max. running current: 0.53A (100W) Lamp type: MR16 tungsten halogen Lamp power: 35W / 42W / 50W / 75W / 100W Lamp life: 1500-4000 hours (wattage dep.) Colour temperature: 2900-3000K (wattage dep.) Dimming: Optional inbuilt Acoustic rating: 17dB(A) - 26dB(A) Min. ambient temperature: -20C Max. ambient temperature: 40C Enclosure: Black, sheet steel

These light sources use lamps based on the tungsten halogen cycle which give uniform light output until close to the time of lamp expiry.

The lamps are low voltage, low in UV output and typically last from 1500 to 4000 hours, depending on wattage.

Because the lamps are relatively cool running there is the option with lower Wattage versions of these light sources to be fanless, although this will have an impact on lamp life.

Optionally, halogen light sources can be mains dimmed, with 75W and 100W units requiring a separate power feed to the fan to avoid it stopping. Alternatively, a popular option is to supply an integral manual dimmer with a dimming control on the light source body.

The UFO range of tungsten halogen light sources is available with lamp Wattages of 35W, 42W, 50W, 75W and 100W, so are suitable for a large variety of project types.

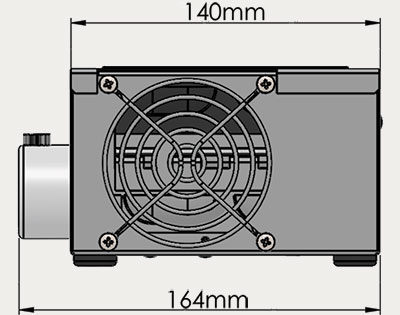

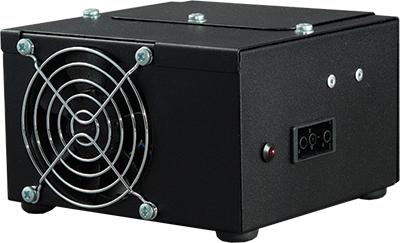

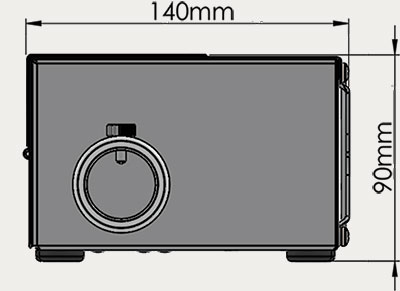

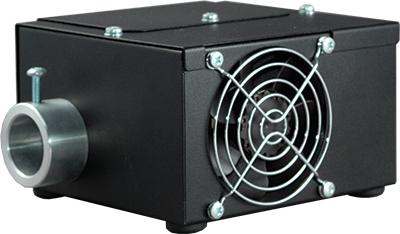

The UFO IxionView | Download Datasheet

	Specifications Dimensions: 164mm x 140mm x 90mm Supply voltage: 110VA 60Hz / 230VAC 50Hz Max. start up current: 0.73A (100W) Max. running current: 0.53A (100W) Power supply: 12VDC Lamp type: MR16 tungsten halogen Lamp power: 35W / 42W / 50W / 75W / 100W Lamp life: 1500-4000 hours (wattage dep.) Colour temperature: 2900-3000K (wattage dep.) Dimming: Optional inbuilt Acoustic rating: 31dB(A) Min. ambient temperature: -20C Max. ambient temperature: 40C Enclosure: Black, sheet steel
