Museum & Gallery Lighting by Universal Fibre Optics

The MetroLED Lighting System. Click, Twist, Play.

LED lighting systems have traditionally ben the poor relation to fibre optics when it comes to illuminating objects and artefacts. Poor maintainability combined with light output over which you never felt you had full control have led to the generally superior fibre optic systems taking an overwhelming lead in the display lighting sector.

Until now. Now everything changes.

Universal Fibre Optics are proud to introduce you to MetroLED.

• Simple - even a child can build it
• Powerful - high powered LED's with both spotlight and linear options
• Controllable - dual channel dimming system
• Modular - it can be assembled in countless configurations
• Maintainable - if one LED reaches end of life, replace only that module

MetroLED really does offer all the above and much more, in a discreet, affordable package which can be rebuilt and reconfigured as often as your displays require it.

MetroLED allows you to change your lighting as often as you change your exhibits.

• Need to replace a long linear wash with individual spotlights? No Problem.
• Need to change from a wide to a narrow light beam to focus on a more intricate object? No Problem.
• Need to mix and match between 3000K or 4000K colour temperatures? No problem.
• Need to do all of the above at once? That's no problem either.

MetroLED - it really is child's play.

View | Download Datasheet

LED Specifications

COMPONENT	VARIANT	NOMINAL POWER	WORKING CURRENT	NOTES
Spotlight	3000K	0.5W	100mA	Available in spot and flood fitting
Spotlight	4000K	0.5W	100mA	Available in spot and flood fitting
Linear Light 45mm	3000K	0.4W	80mA
Linear Light 45mm	4000K	0.4W	80mA
Linear Light 95mm	3000K	0.8W	80mA
Linear Light 95mm	4000K	0.8W	80mA
Linear Light 245mm	3000K	2.3W	80mA
Linear Light 245mm	4000K	2.3W	80mA
MetroLED Driver	Version 2	N/A	Variable	Overload indication & shut down

General Technical Specifications

DESCRIPTION	DETAILS
Mains supply voltage	100-240V AC, 50/60Hz
PSU output	5V DC
Min. ambient temperature	-10°C
Max. ambient temperature	45°C
Power connection	2.1 x 5.5 x 12mm
LED type/model	White light
LED linear CRI	85 (typical)
LED linear colour temperature	3000K or 4000K
LED linear optical efficiency	112 Lumen / W
LED linear current	10mA
LED spot CRI	95 (typical)
LED spot colour temperature	3000K or 4000K
LED spot optical efficiency	66 Lumen / W
LED spot current	100mA
LED life	50,000 hours in ambient 25°C

System Overview

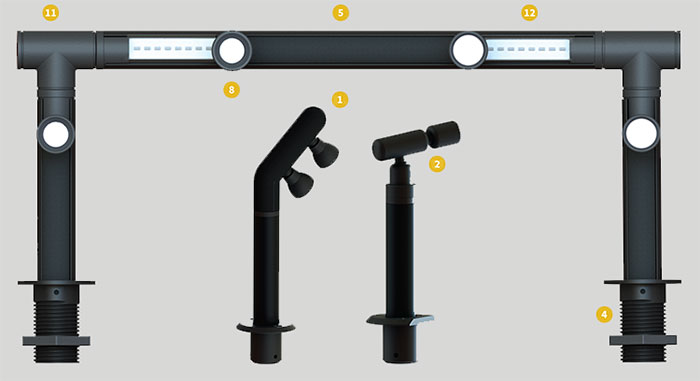

System Components

1. 45° Elbow Part: MTL-EB	2. Driver and Dimmer Part: MTL-D4 or MTL-D7	3. Twistlock Spot Fitting Part: MTL-SL-3K or MTL-SL-4K
4. Mounting Feet Part: MTL-MF / RT / RS / CT	5. Spare Infill Part: MTL-EB	6. Gooseneck Fitting Part: MTL-GS-3K or MTL-GS-4K
7. 20mm Extrusion & Infill Part: MTL-EI	8. Trumpets & Lenses Part: MTL-LNS-CL / MO-W / N / C / F / D	9. End Cap Part: MTL-EC
10. Power In Connector Part: MTL-PIC	11. Rotating Corner - Left or Right Part: MTL-RC/L or MTL-RC/R	12. Linear Strip - 45,95 or 245mm Part: MTL-LS/45/95/245/ - 3K/4K
13. Dimmer Plate Part: MTL-DP	14. Power Supply Unit Part: MTL-PSU

Ordering Notes

• Rotating corners are available in left and right handed versions. please suffix code with L or R to signify.
• Three types of mounting feet are available - round threaded as well as round and corner screw down.
• Two ranges of trumpets available. Classic (CL) & Contemporary (Co). Classic trumpets have clear or frosted lenses whilst contemporary are clear or diffused.
• Both trumpet ranges are available with wide or narrow angled lenses.
• Twistlock spot fittings, gooseneck, elbow and linear strip modules are available in both 3K & 4K colour temperature variants.
• All parts are available in black, white or grey. please specify when ordering.
• power supply unit has fittings for UK, US and EU sockets. Can be used with driver & dimmer or individually if no dimming is required.
• Dimmer cover plates fit over standard single gang lighting pattress and are available in chrome, brass and brushed aluminium colours.
• We are constantly looking at ways to enhance MetroLED, so specifications are subject to change without notice.
